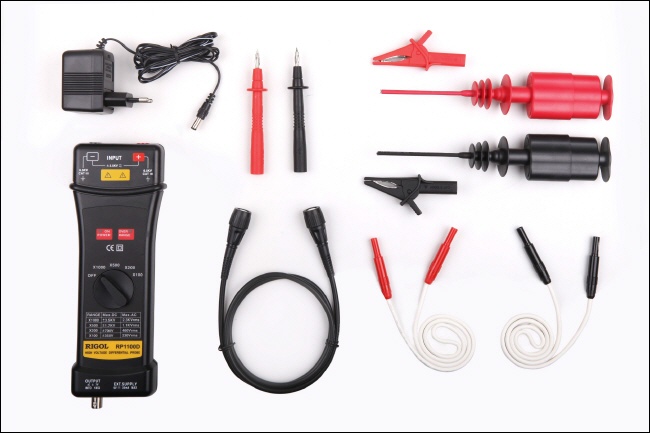

RP1100D - High Voltage Differential Probe
Probe für Hochspannung
RP1100D Overview - BW 100MHz - Max. Voltage =< 7000Vpp
RP1000D Overview (RP1025D, RP1050D, RP1100D)
RP1000D series high voltage differential probe can convert high differential input voltage (1400Vpp - 7000Vpp) to low voltage and display the waveform on oscilloscope. Its working frequency is up to 25MHz (RP1025D), 50MHz (RP1050D) and 100MHz (RP1100D) and it is rather suitable for large electricity test and R&D.
RP1000D series high voltage differential probe is applicable to general purpose oscilloscope and the labeled attenuation ratios are those when the input impedance of the oscilloscope is 1MΩ. The attenuation ratios will double when the input impedance of the oscilloscope is 50Ω.
er.
Mehr >>> RP1000D Series userguide & manual
|
|
